MOZA Pedal Haptic Feedback Kit
MOZA Pedal Haptic Feedback Kit
Couldn't load pickup availability

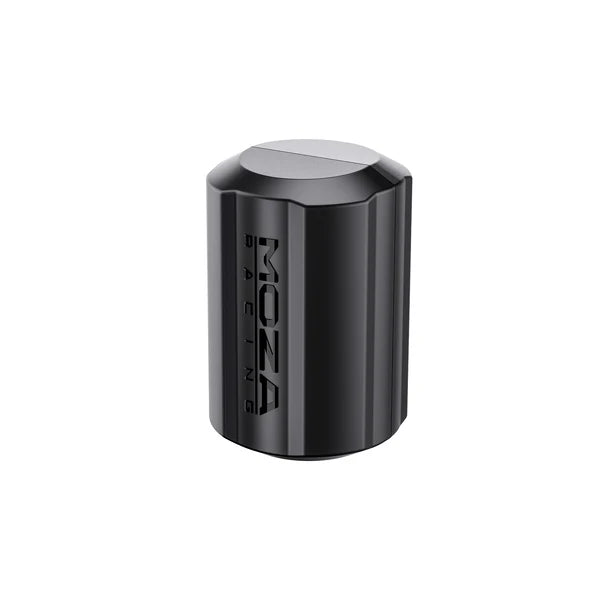

MOZA PHF Pedal Haptic Feedback Kit

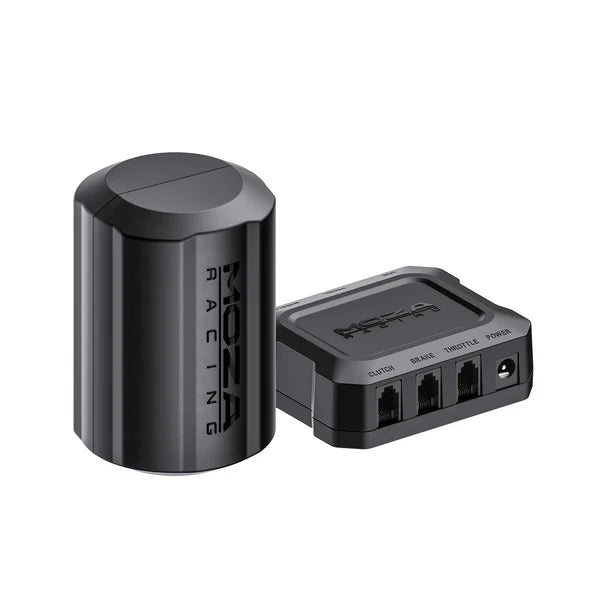

Bring essential vehicle feedback directly to your pedals with the MOZA Pedal Haptic Feedback Kit. The kit includes one MOZA PHF Pedal Haptic Feedback Module and one Control Box, delivering precise, customizable feedback from 0 to 100 Hz for ABS, traction control, engine RPM, wheel lock-up, wheel slip, and gear shifts.
Connect the Control Box directly to a PC or through a compatible MOZA wheelbase. The PHF Module supports MOZA SRP, SRP Lite, SRP2, and CRP2 pedals. Third-party non-active pedal sets can also be supported through a direct PC connection using custom user-designed mounting solutions.
High-Performance Motor
Powered by a high-performance motor capable of frequencies up to 100 Hz, the MOZA PHF Pedal Haptic Feedback Module delivers more detailed, responsive, and precise haptic feedback than conventional 50 Hz solutions.
Compact & Easy to Install
Its compact form factor makes installation easy, with support for throttle, brake, and clutch pedals.
Broad Pedal Compatibility
Compatible with MOZA’s full range of non-active pedal sets, including the SR-P, SR-P Lite, SRP2, SRP Lite2 and CRP2.

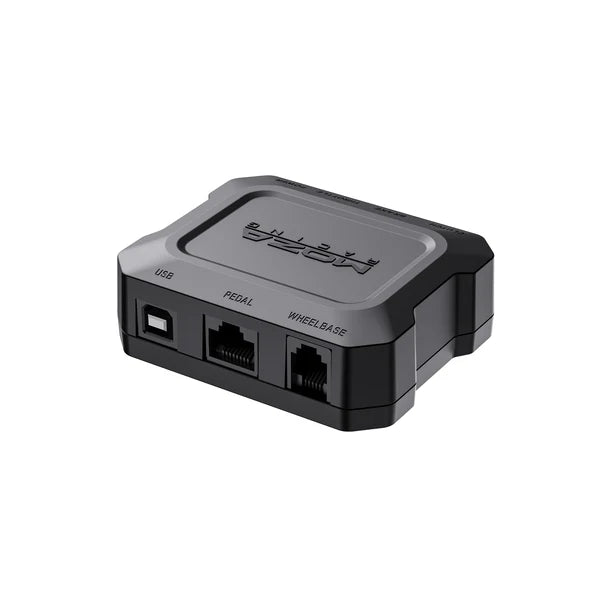

Independent Control Box
A dedicated control box manages the haptic module and supports signal transmission either through a direct PC connection or via a compatible MOZA wheelbase.
Pit House Smart Tuning
Supports a wide range of telemetry-based effects, including ABS, traction control, engine RPM, wheel lock-up, wheel slip, and gear shifts. Both vibration frequency (0–100 Hz) and intensity (0–100%) can be fully customized to suit individual preferences.

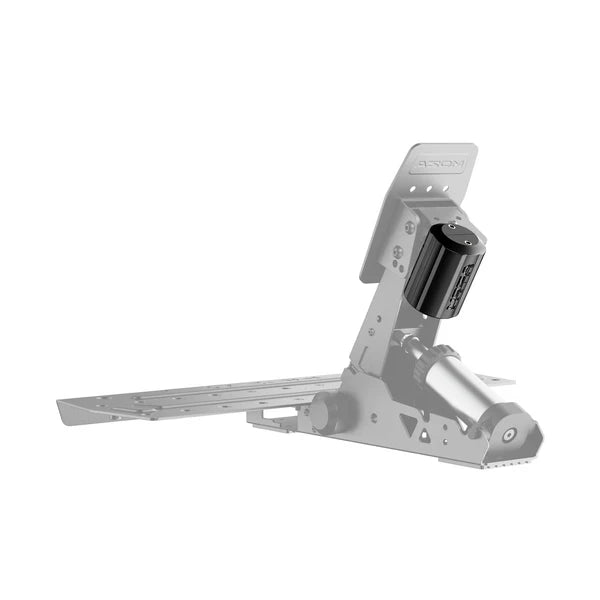

High-Strength Integrated Mounting Bracket
Featuring a high-strength integrated mounting bracket, the module remains securely mounted during intense braking and high-load driving conditions.
Open Ecosystem
By connecting directly to a PC through the control box, the haptic module can be integrated with third-party non-active pedal sets using custom user-designed mounting solutions.
Specs
Compatible Pedals: SR-P Pedals, SRP2 Pedals, CRP2 Pedals, SR-P Lite Pedals
Supported Software: MOZA Pit House
PHF Module Dimensions: 40 × 41 × 61 mm
Control Box Dimensions: 80 × 66 × 26 mm
Power Supply: 12V, 2A
Net Weight: 98 g
-
