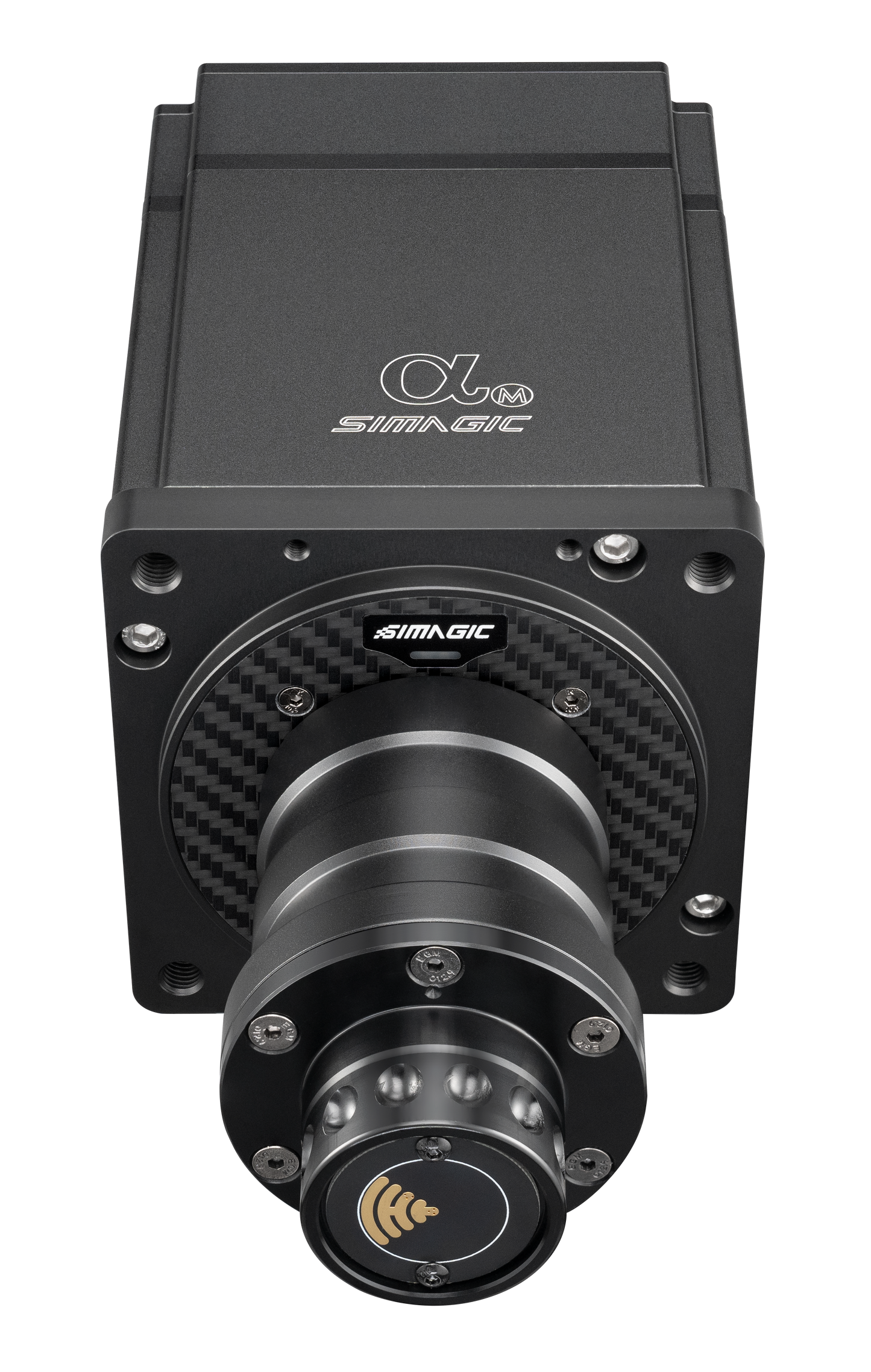

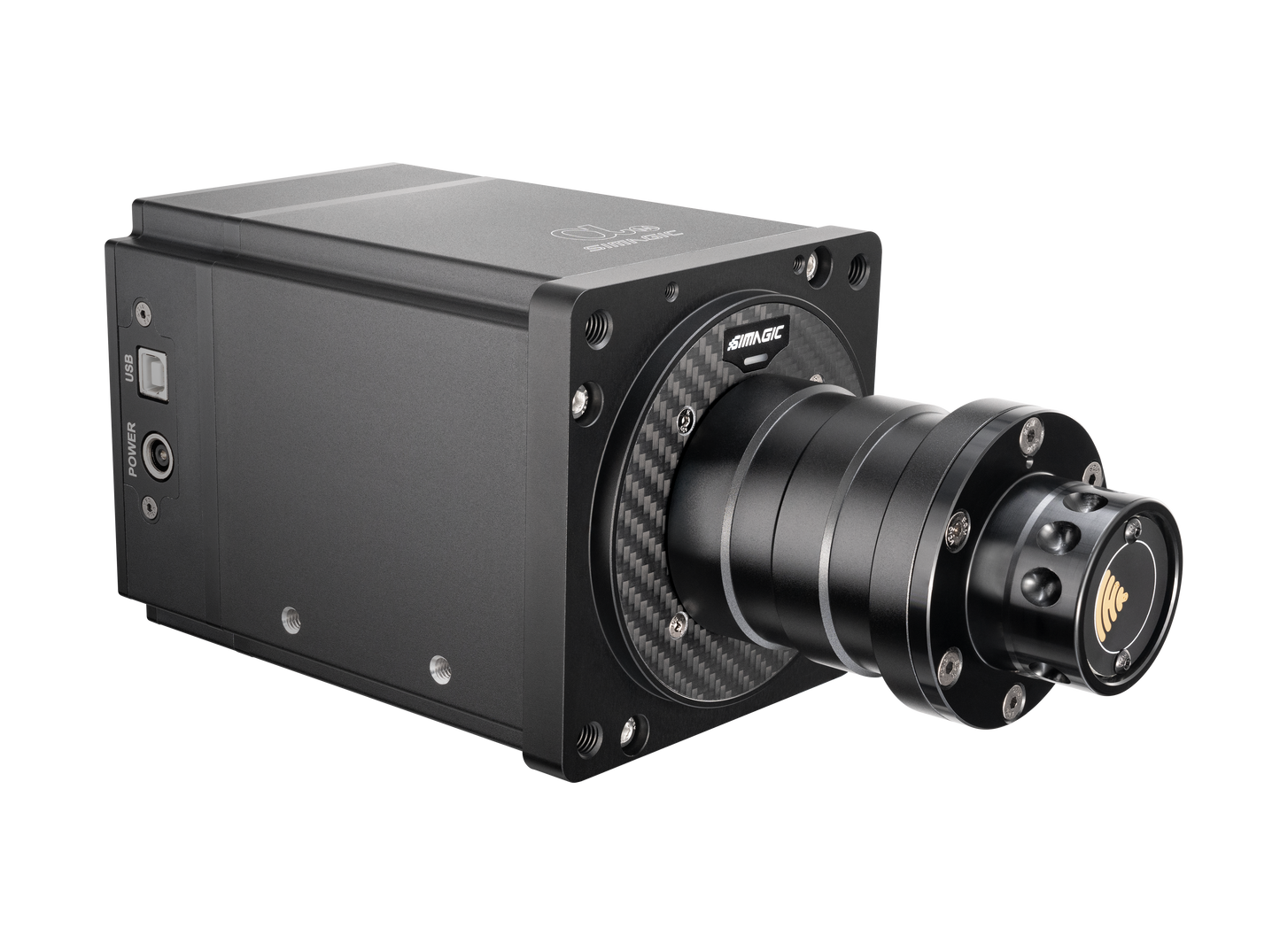

Simagic Alpha Mini Direct Drive Wheelbase

Simagic Alpha Mini Direct Drive Wheelbase

Regular price R 14,620.00
Regular price Sale price R 14,620.00
Sale Sold out
Shipping calculated at checkout.
Key Features
  • Next Gen Driver: SimPro Manager
  • New Gen CPU 200 MHz processor
  • 10Nm Maximum Torque
  • 2.4g Independent Channel
  • 3rd Gen Filter
  • 262144ppr Encoder Resolution
  • Peripheral Support
  • Patented Simagic Quick Release
  • Sim Cockpit Ready
  • Wireless Power Supply

Start Your Direct Drive
Feel the upgrade of force feedback, the precision and authenticity that have been absent from any non-direct drive

Maximum Torque - 10Nm

Processor - 200mhz

Encoder resolution - 262144ppr

True Direct Drive Servo Motors

Custom 5-pole servo motors ensure the best Direct Drive experience possible. 10Nm maximum torque delivers clean and detailed Force Feedback. 1ms Ultra-fast response time with virtually zero latency.

Full Metal Construction

CNC Machined Aluminum housing Polished using sandblasting and oxidation process. The sleek black exterior echoes the unique performance aspects of the Alpha Base — Keep Calm and Go Wild.

Force Feedback Redefined

New gen CPU Architecture with a real-time processor. 262144 ppr encoder resolution 40Khz response rate 3rd Gen filter with optimized algorithms All of which allow you to experience optimal FFB like no other.

Patented Wireless Power Supply

Wireless Transmitter Modules. Wireless Steering Modules. Simagic sets you free by eliminating wire clutters.

Next Gen Driver: SimPro Manager

If you are a beginner, plug and play with our pre-sets. If you are a hardcore racer, then there are various FFB settings that await your exploration. And there are still more to come. Stay tuned.

Technical Parameters
Motor Type: Custom 5-pole servo motors
Maximum Torque: 10Nm
Wireless Power Supply Tech: Included
3rd Filter: Included
Encoder Resolution: 262144 ppr
Processor Frequency: 200 MHz
Response Rate: 40 Khz
Mounting Bracket: Optional
Simagic Quick Release: Optional
Building Materials: Aluminum Alloy, Carbon Fiber
Dimensions: 259.5mm x 110mm x 91.92mm
Mounting Holes: M6 X 4 Threaded Holes
Net Weight: 6.35kg
In the Package: Warranty Card, Installation Kit, PSU, USB Cable
