PT Actuators

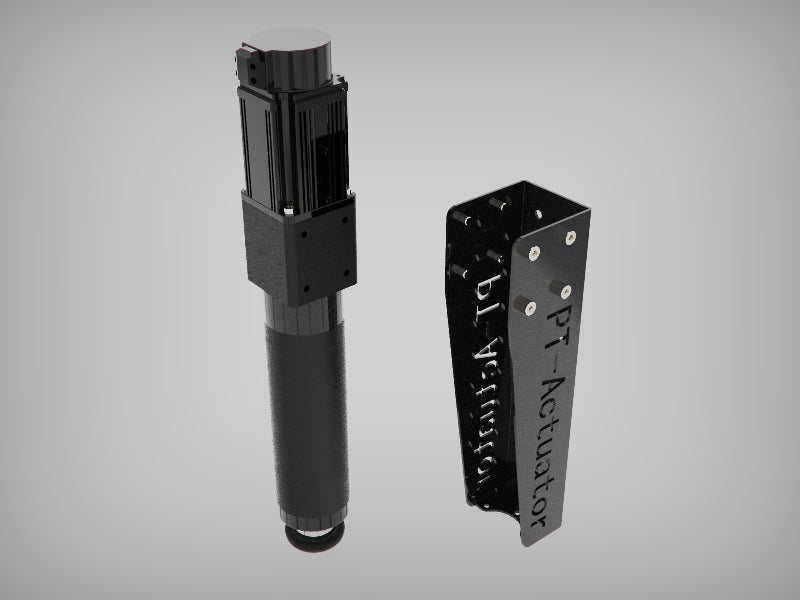

PT Actuator Scorpion S (Super) 3DOF

PT Actuator Scorpion S (Super) 3DOF

Regular price R 228,900.00
Regular price Sale price R 228,900.00
Sale Sold out
Shipping calculated at checkout.
ETA on Pre-Orders estimated at 3-4 weeks
The PT Actuator Scorpion 3-DOF motion DIY kit adds Heave, Pitch and Roll to your rig and can be fitted to any profile based chassis.

The actuators provide a stroke of 150mm/s and acceleration of up to 250mm/s to enhance your experience while racing or flying.

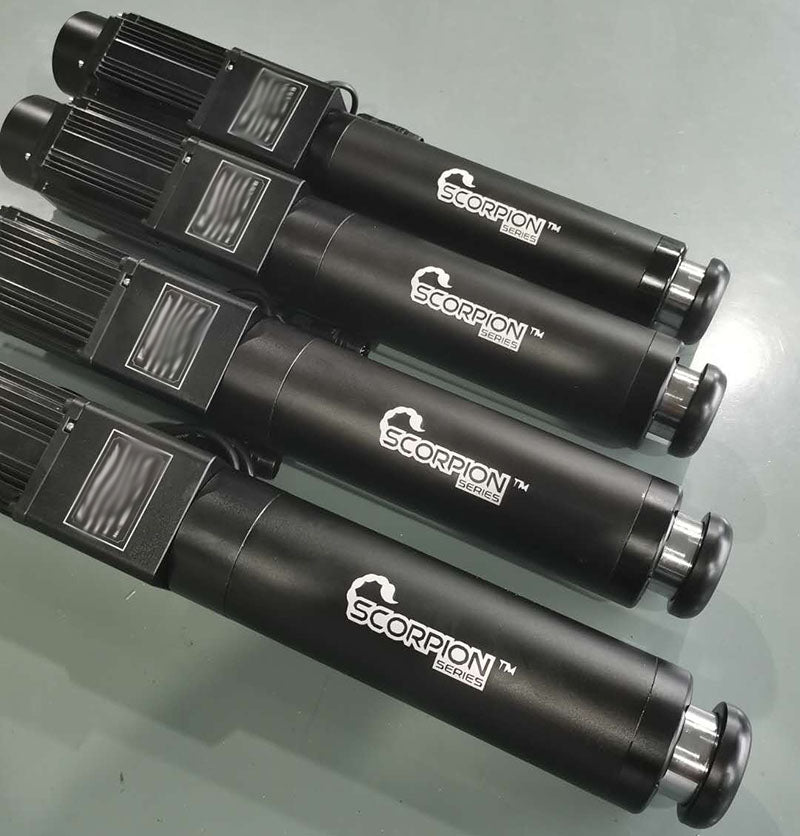

  • 4x Servo Scorpion S-series actuators
    • Speed: 250mm/s,
    • Force: 200kg
    • Stroke: 150mm/5.91 inches
  • Scorpion series U brackets
  • Power and encoder cables (3meters long)
  • Floor contact cups
  • 4x AASD15A servo driver (flange size 80 with 750w)
  • AMC-AASD15A controller
  • Pre-wired Metal Housing for the servo driver and controller system

Supported Motion Software: Sim Racing Studio or  Simtools V2 (not included)

View full details
  • We Ship Country-wide

    We have partnered with The Courier Guy and shipping can be done to any location in South Africa. All shipping costs will be provided on Checkout. All aluminium rigs are shipped fully assembled.

  • Delivery & Collections in Gauteng

    We do provide delivery services to any location in Gauteng You also have an option to collect from us in Centurion, Pretoria
