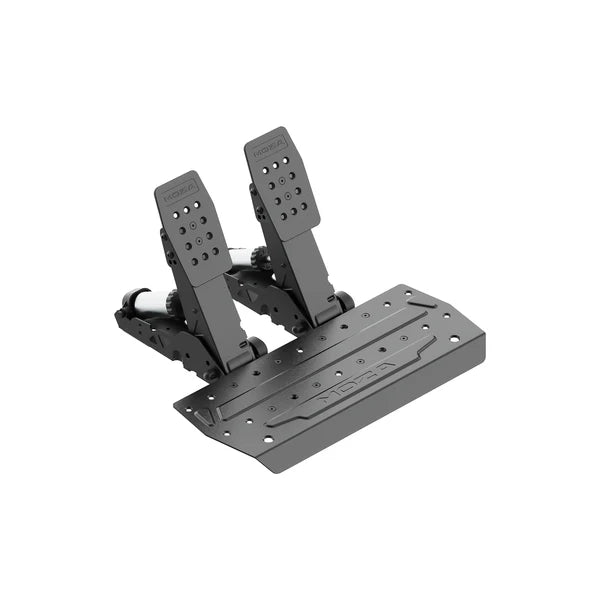

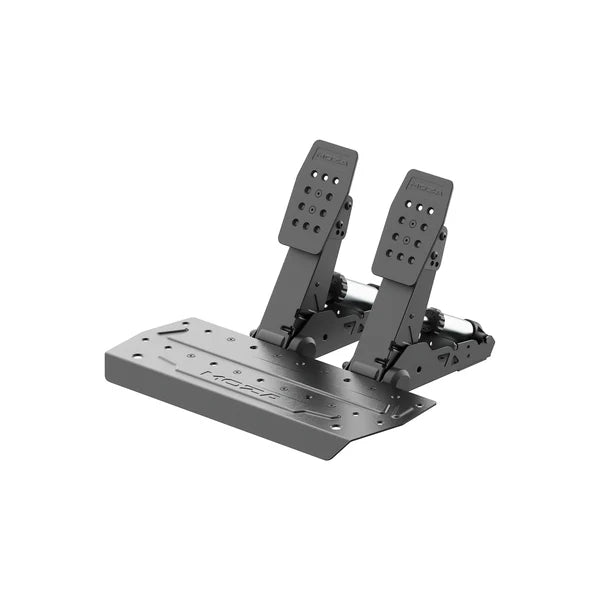

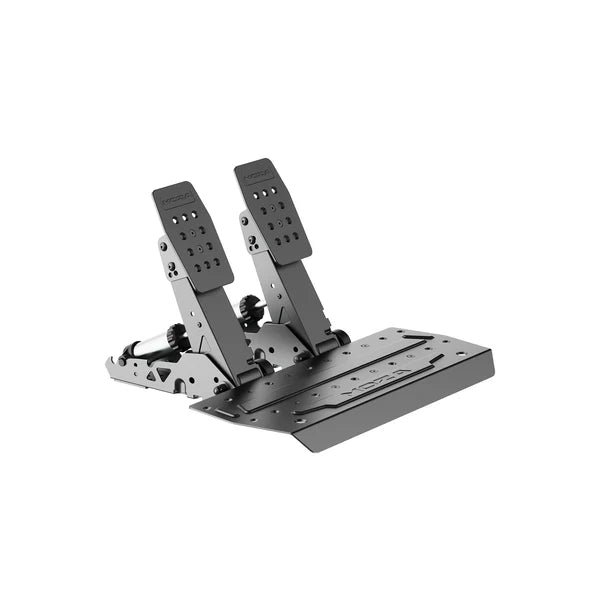

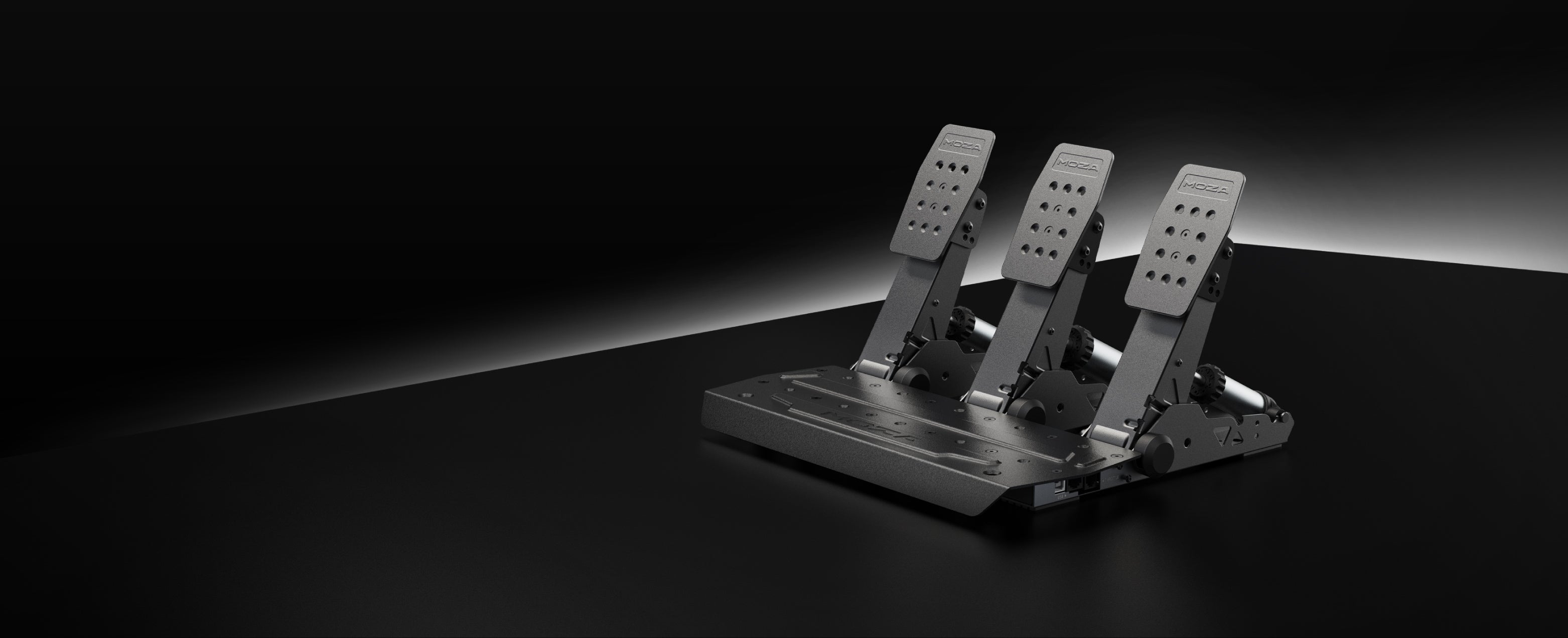

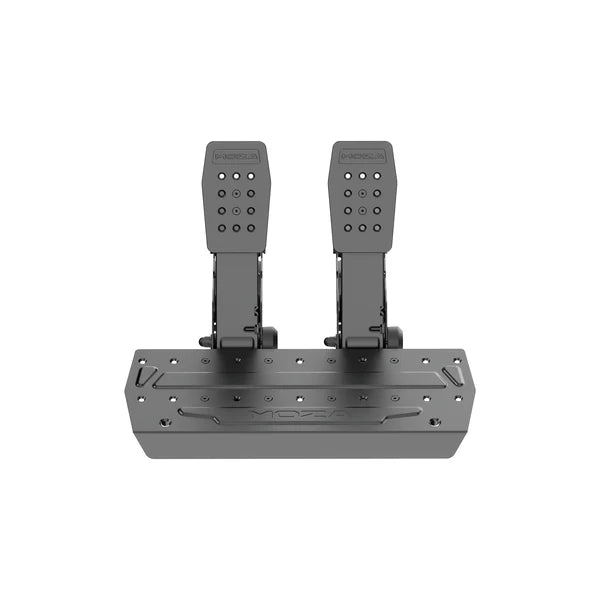

SRP2 Load Cell Pedals
- 25 Brake Feel Configurations
- Aluminum Construction
- 100KG High-precision Load Cell Sensor
- 15-bit High-precision Angle Sensor
- Wide-range Adjustable Design
- Smooth and Quiet Operation
- Tool-free Adjustment
- Open Ecosystem

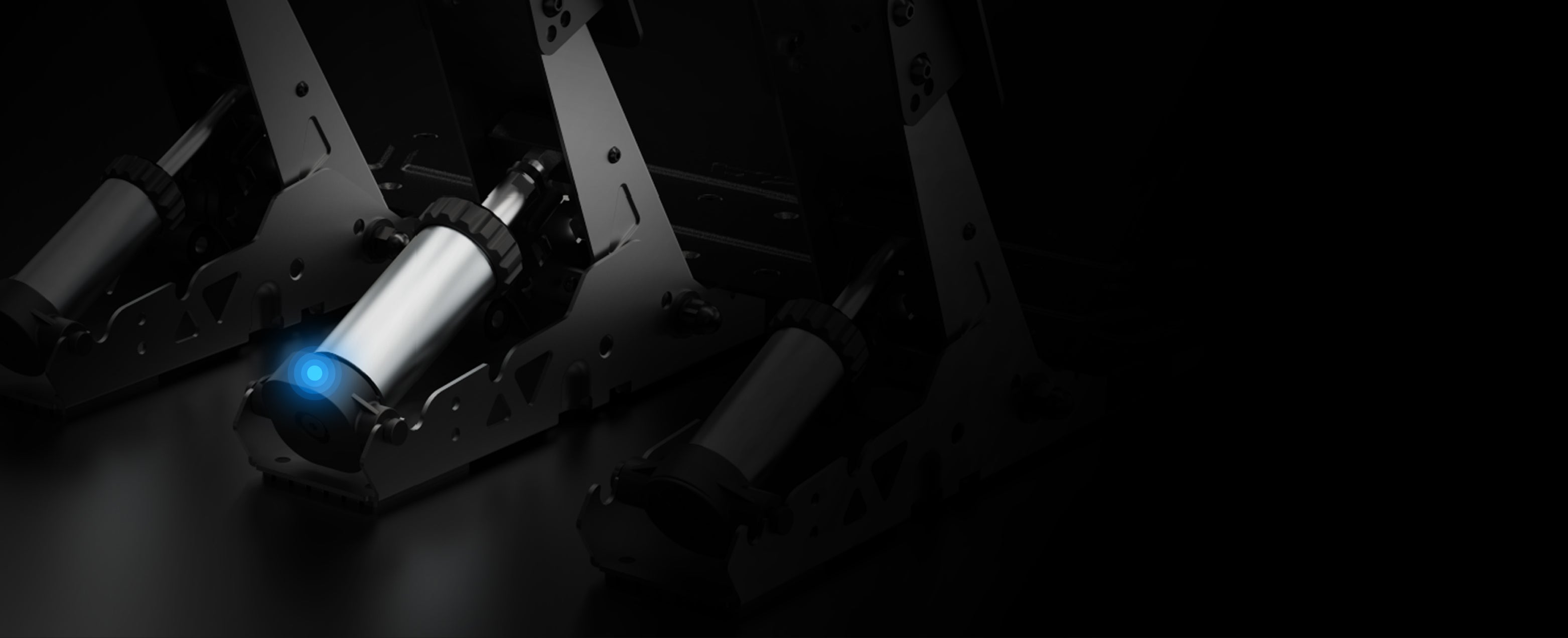

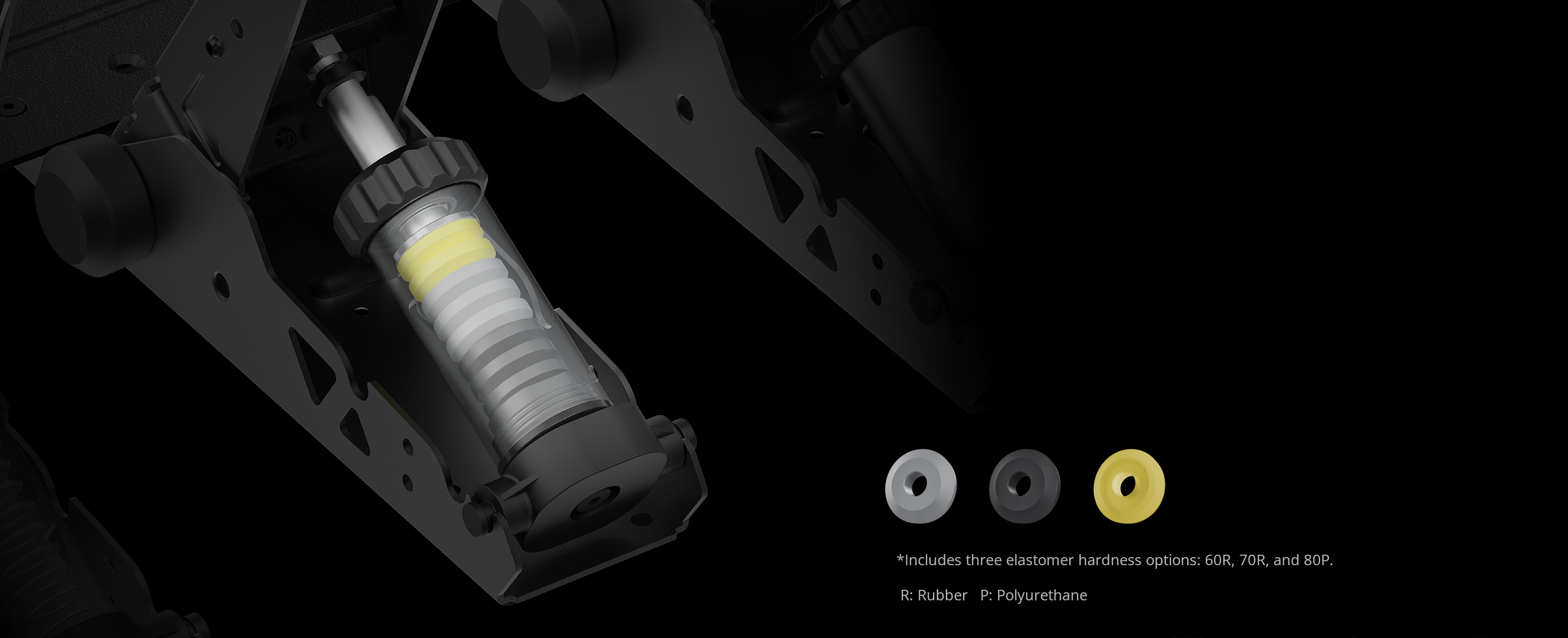

Brake Feel Adjustment with Elastomer and Spring
The standard setup features an elastomer structure with multiple spring hardness options (60R, 70R, and 80P), offering 25 distinct brake feel configurations. The optional Performance Kit provides additional elastomers and springs, enabling over 1,000 customizable brake feel settings.
Aerospace-grade
Aluminum Construction with
CNC Precision Machining
Pedal components are made from aerospace-grade aluminum, precision-machined using CNC technology, and anodized for enhanced durability. The base and pedal linkages are constructed from high-strength steel to withstand high torque and pressure.
100KG High-precision Load Cell
Featuring a 100Kg load cell, this sensor provides highly accurate and responsive brake input, making it ideal for users seeking precise control.

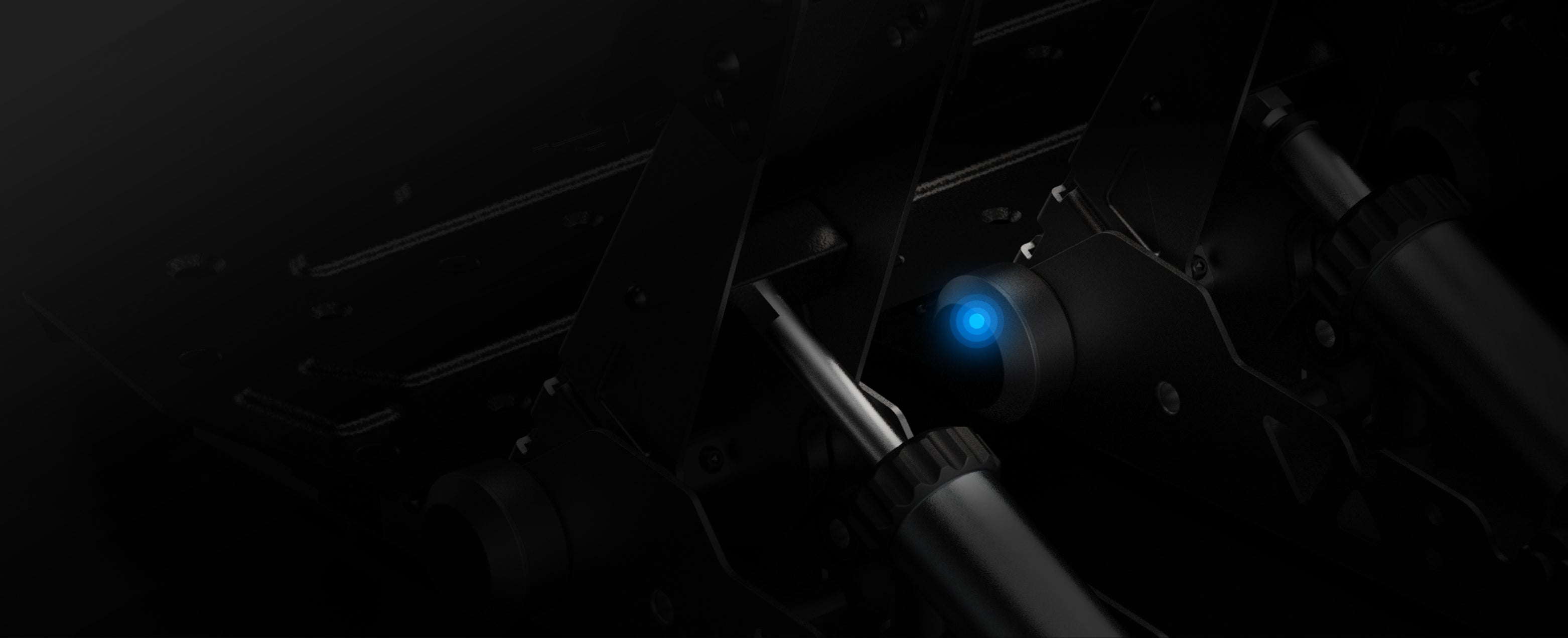

15-bit High-precision Angle Sensor
Utilizing patented sensor fusion technology, this system combines a 15-bit angle sensor with the load cell, ensuring precise brake inputs while leveraging muscle memory for accurate control over braking force.

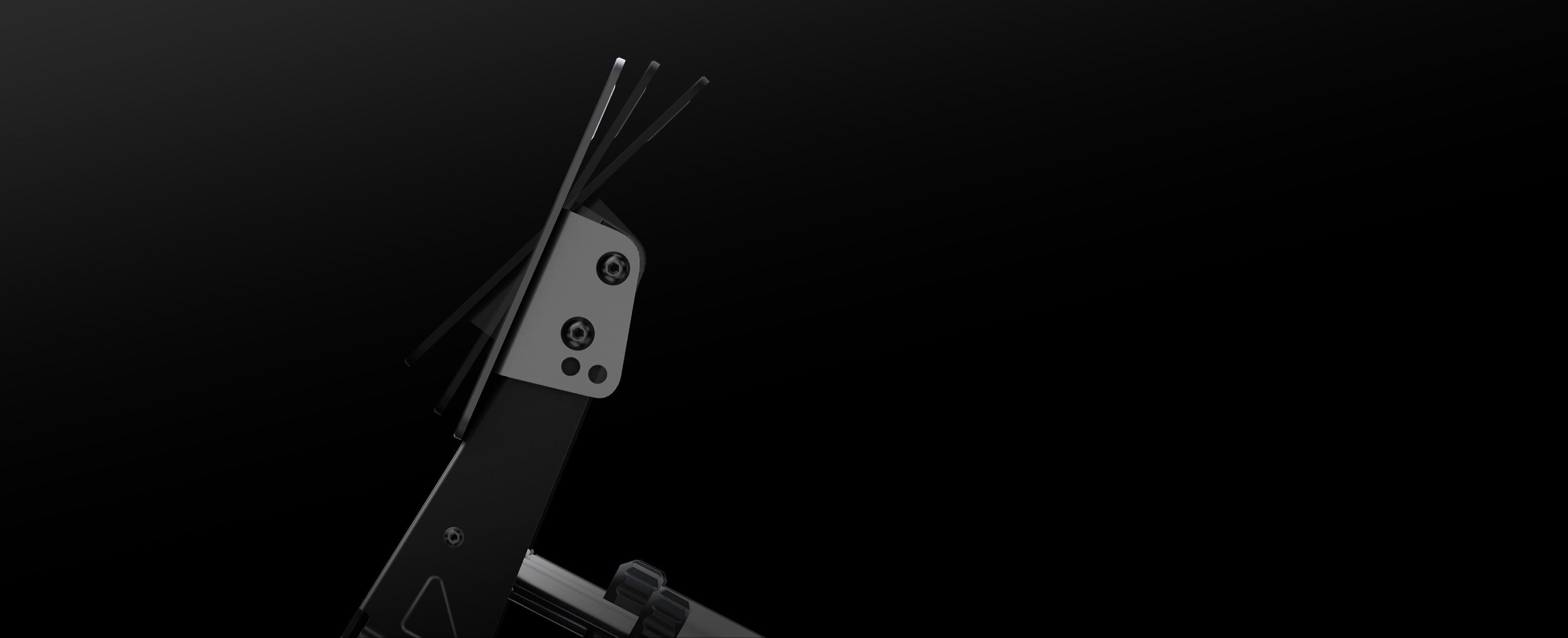

Adjustable Pedal Angle
The pedals feature a full 25° of angle adjustment allowing for better customization to suit different user preferences and ergonomic needs.

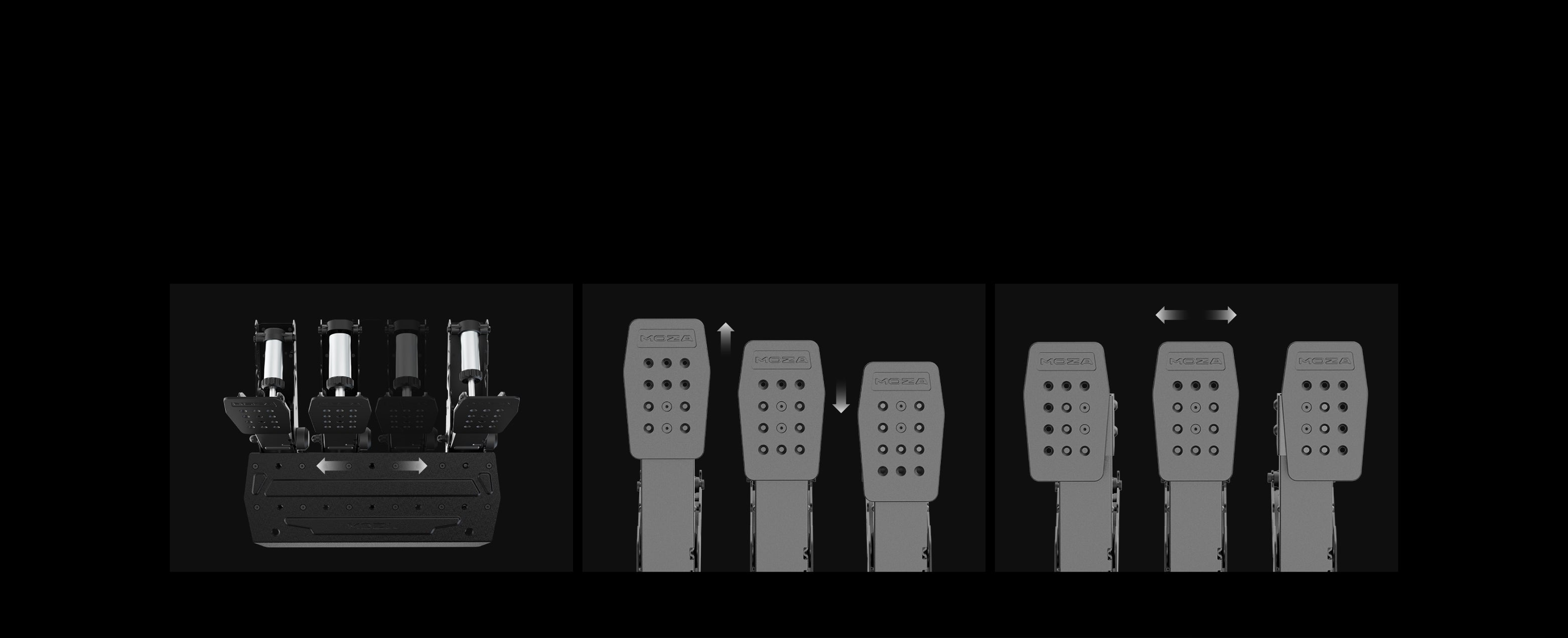

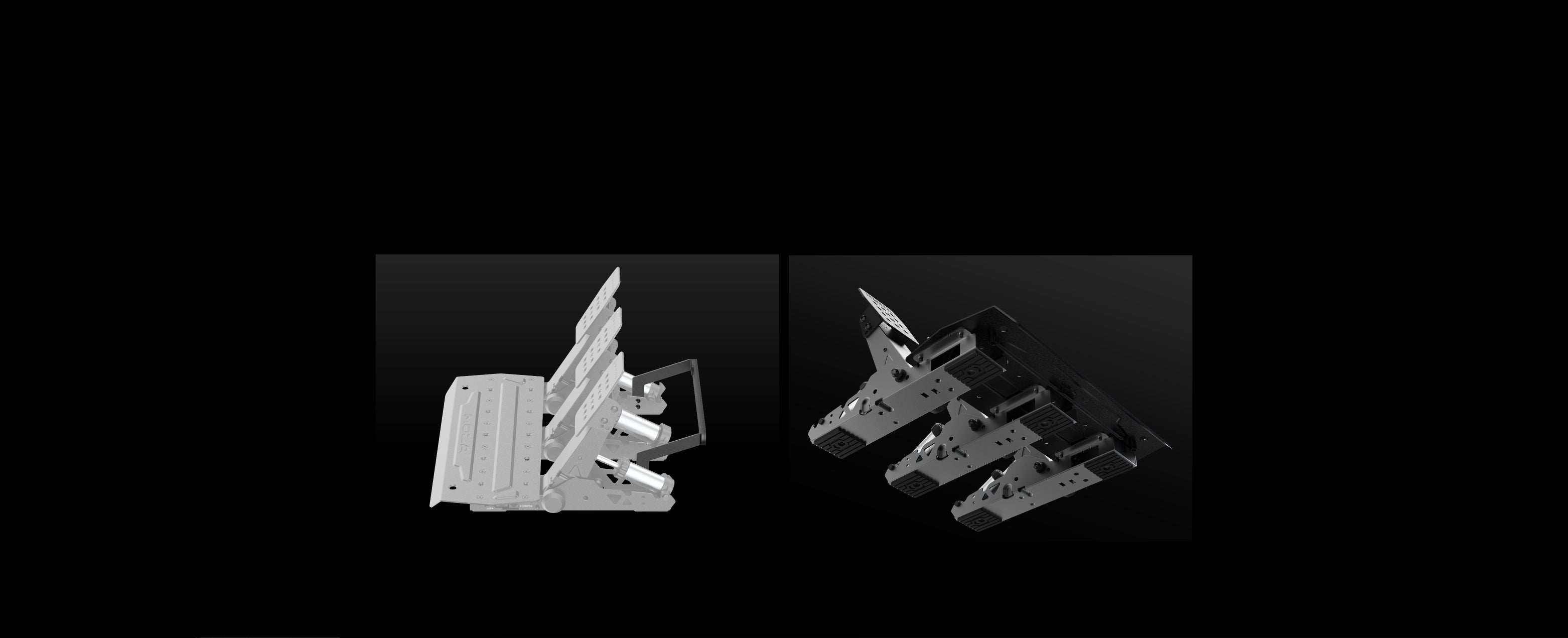

Adjustable Pedal Position and Height
The spacing between the brake, throttle, and clutch pedals can be easily adjusted, with the option to fine-tune the distance (±15mm left/right) by adjusting the pedal installation position. Additionally, the pedal height is individually adjustable with a range of 36mm.

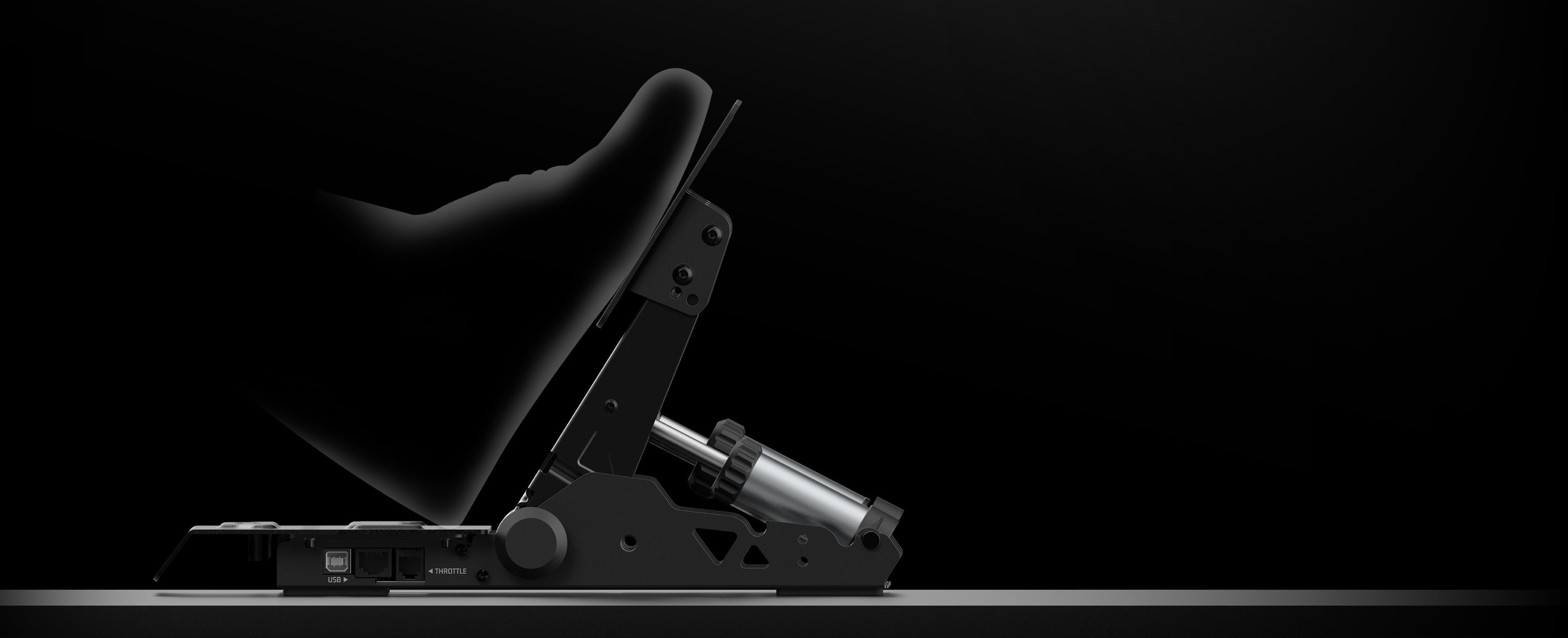

Desktop-optimized Design
The angle of the pedal arm is tailored for desktop racing setups, aligning with natural seating and foot positioning.
Optional Wall Support Bracket
An optional wall support bracket is available to further stabilize the pedals, preventing sliding and enhancing comfort during use.

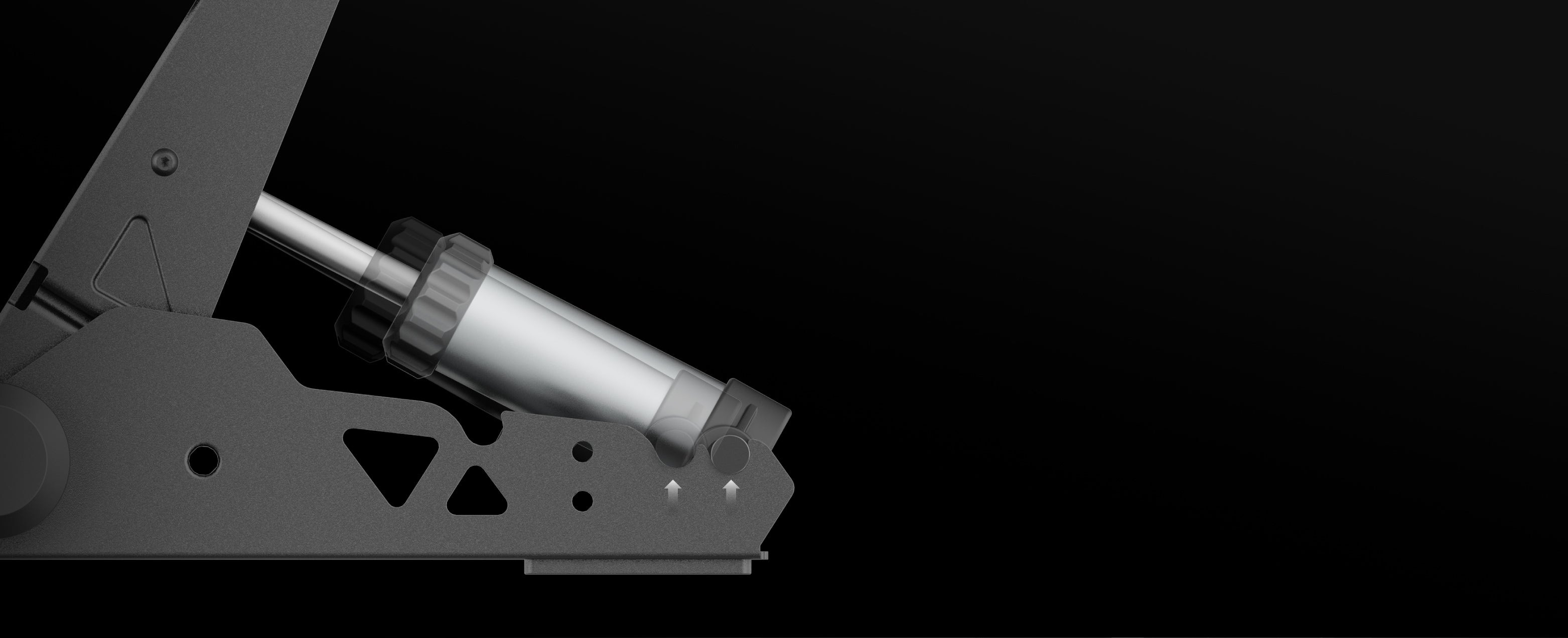

Adjustable Throttle and Clutch Feel
Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.

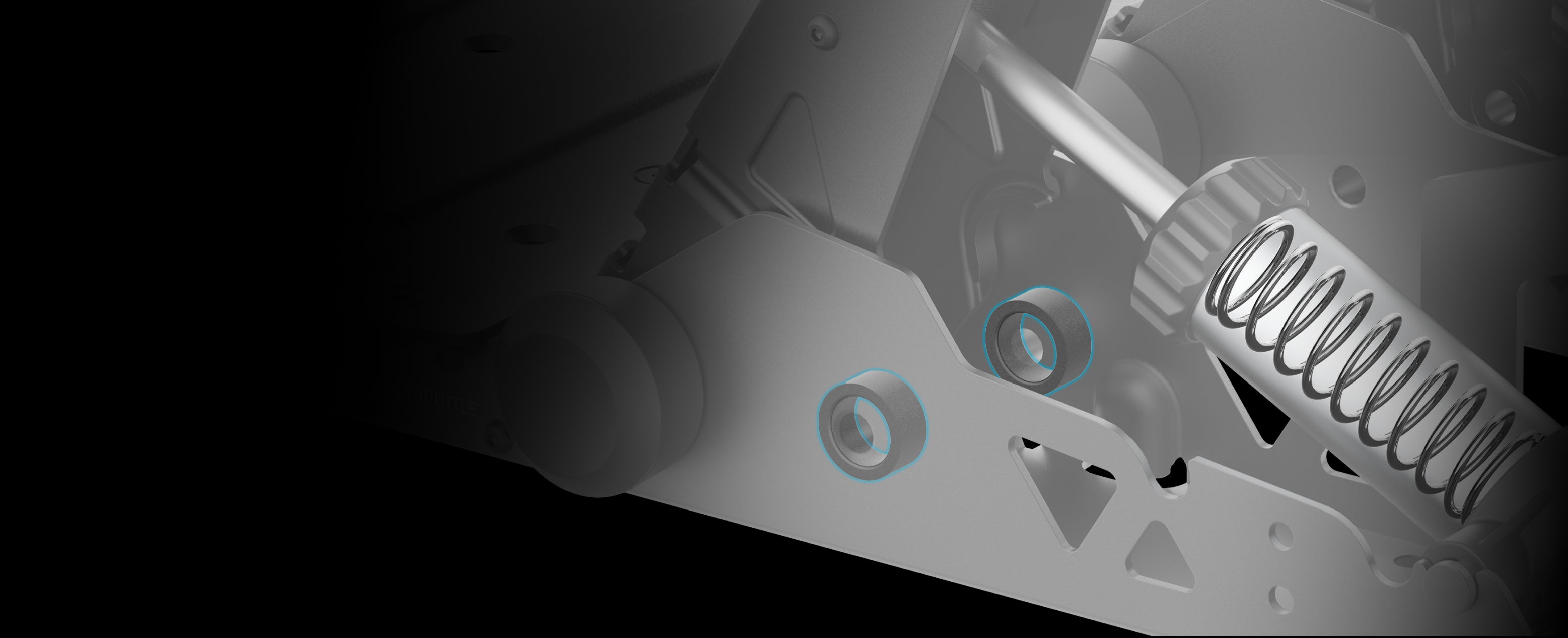

Extremely Smooth and
Quiet Operation
The enclosed sleeve motion structure and highly polished steel shafts ensure exceptionally smooth and quiet pedal movements. Soft cushioning at the limit points further reduces noise, providing a more immersive experience.

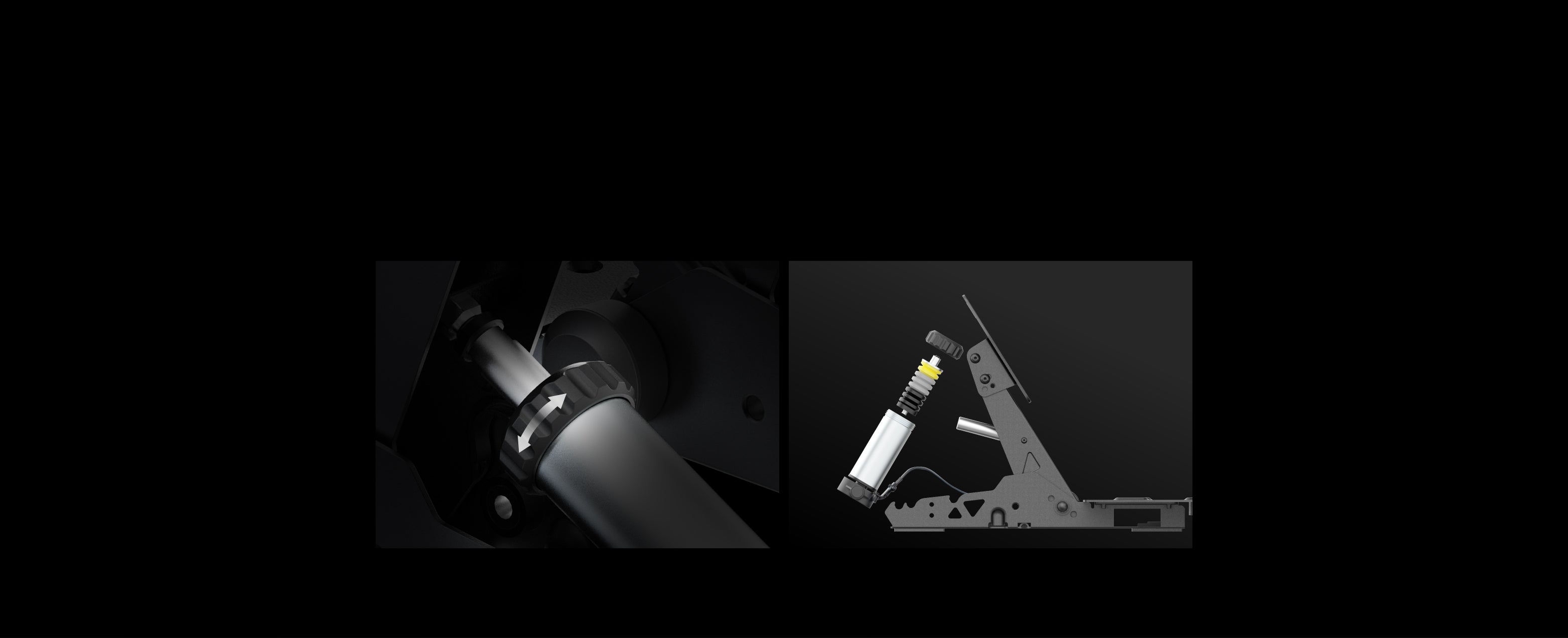

Tool-free Adjustment
The pedal system is designed for quick, tool-free force adjustments, allowing you to modify brake feel and force levels with just your hands.
Full Compatibility

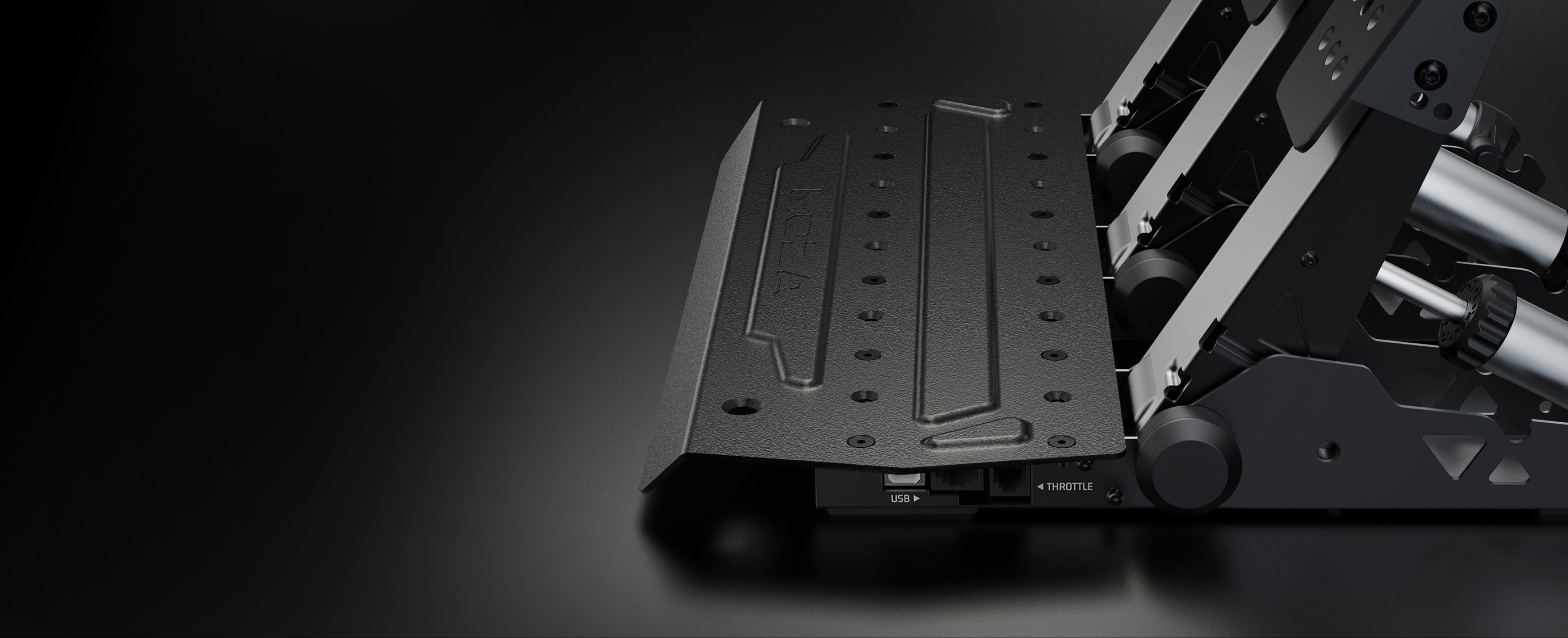

Directly connect to PC and compatible with almost all branded bases, fully supporting MOZA's wheelbase lineup.
Professional Software Support
With the Pit House software, you can monitor pedal performance, adjust pedal travel and signal output curves, and view real-time data, allowing the hardware to perform at its full potential.
Optional Performance Kit
The optional performance kit includes 10 molded springs, rubber springs, and metal blocks, which can be combined with the standard setup to provide over 1,000 possible brake feel configurations. This kit can replicate the stiff brake feedback found in high-performance racing cars like F1 and LMP1, allowing for ultra-fast brake response times.
Extreme Durability
Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.
Specs
Pedal Material: High-strength Steel
Base Material: High-strength Steel
Load Cell Range: 0-100 kg
Brake Sensing Method: Hybrid Load Cell and Angle Sensor
Angle Sensor Resolution: 15-bit (32,768 PPR)
Brake Feel Adjustability: Supported by swapping the included 2 elastomer sets or using the optional Kit
Throttle Adjustability: 2-step preload adjustment
Clutch Adjustability: 2-step preload adjustment
Pedal Angle Adjustment Range: 10°/25°
Pedal Left/Right Adjustment Range: 15 mm
Pedal Height Adjustment Range: 36 mm
Pedal Curve Adjustment: Supported
Real-time Pedal Output Display: Supported
Brake Pressure Engagement Point Adjustment: Supported
