PT Actuators

PT Actuator Motion Dragon 6DOF GT

PT Actuator Motion Dragon 6DOF GT

R 462,000.00
R 462,000.00
Sale Sold out
Shipping calculated at checkout.
ETA on Pre-Orders estimated at 3-4 weeks

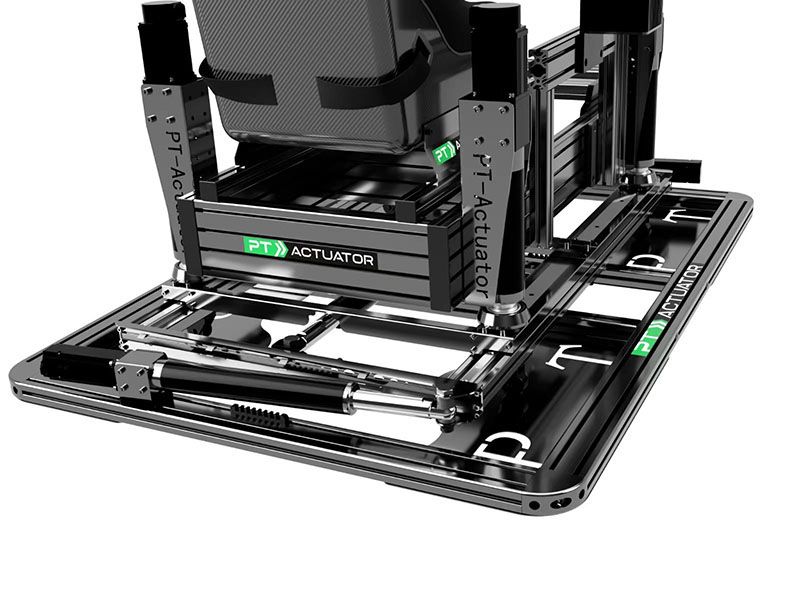

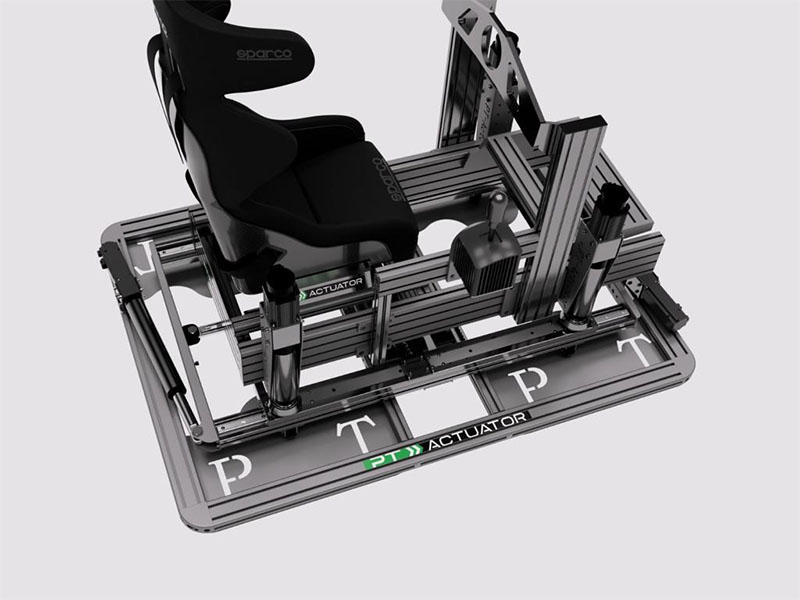

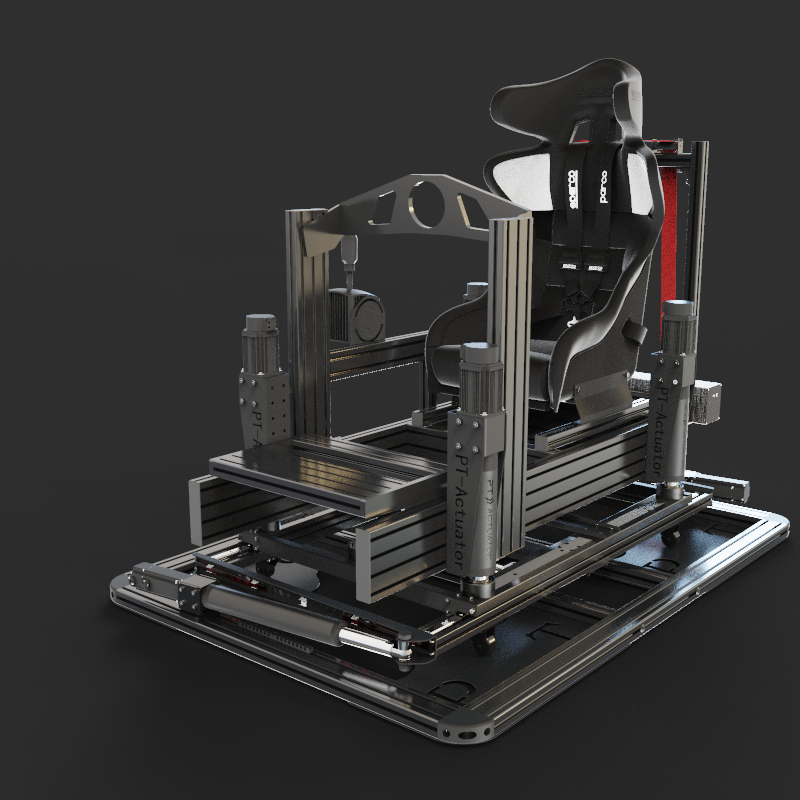

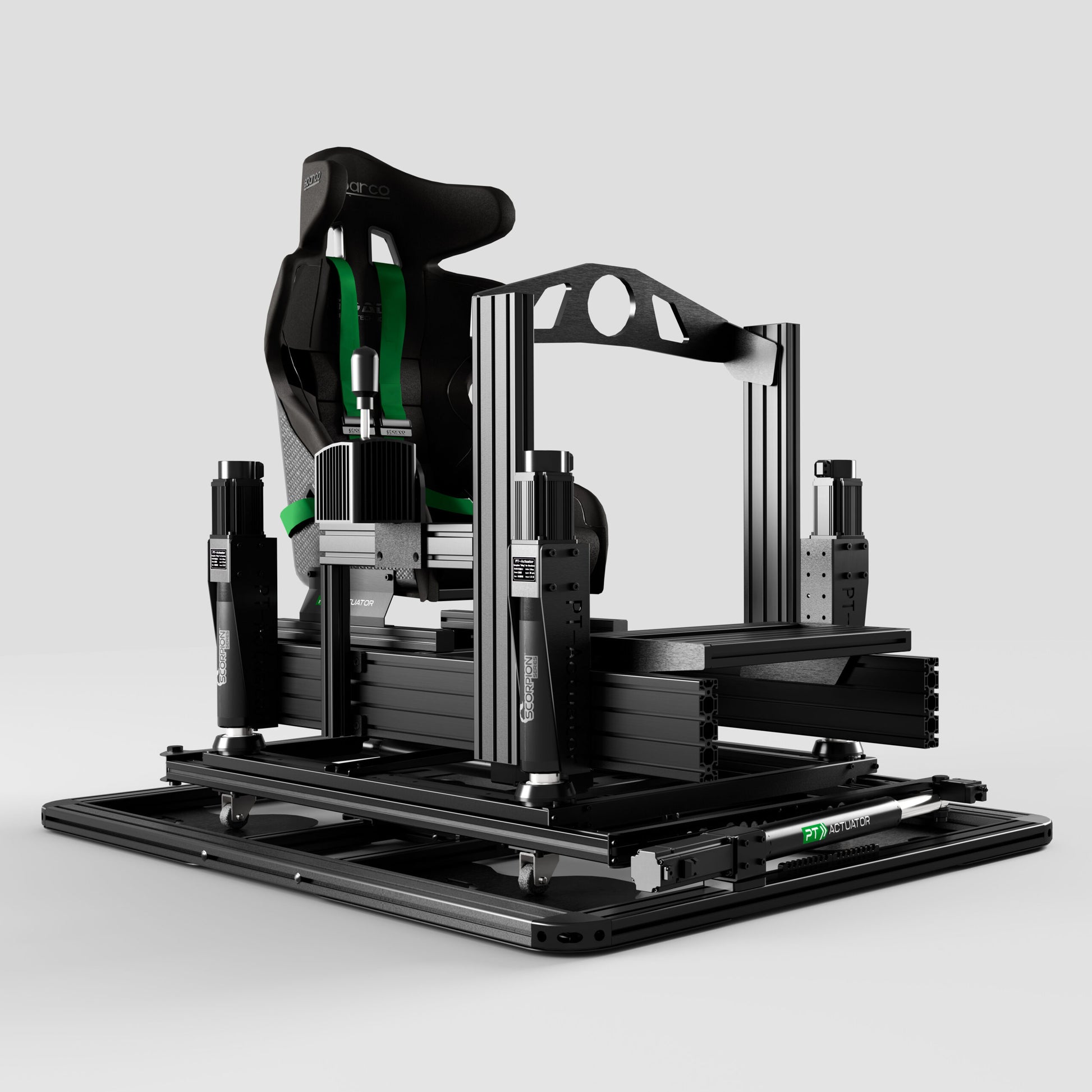

The PT Actuator Motion Dragon 6-DOF motion system adds Heave, Pitch and Roll, as well as Traction Loss Front & Back and Surge to your rig and can be fitted to any profile based chassis.

The actuators provide a stroke of 150mm/s and acceleration of up to 250mm/s to enhance your experience while racing or flying.

INCLUDED:
  • 1 set of PTA controller
  • 4 set of shield PTA servo driver (flange size 80 with 750w) ( 3 years super long- term warranty )
  • 3 set of shield PTA servo driver (flange size 60 with 600w) for traction loss and surge ( 3 years super long- term warranty )
  • 4 set of metal plate cups
  • 4 set of Scorpion S servo actuators (speed:250mm/s, force:200kg, stroke/150mm) perpendicular ( 3 years super long- term warranty )
  • 2 sets of baby monster actuator ( speed:250mm/s,force:80kg,stroke/ 250mm) for front and rear TL ( 3 years super long- term warranty )
  • 1 set of servo actuator (speed:250mm/s, force:80kg, stroke/250mm) for Surge ( 3 years super long- term warranty )

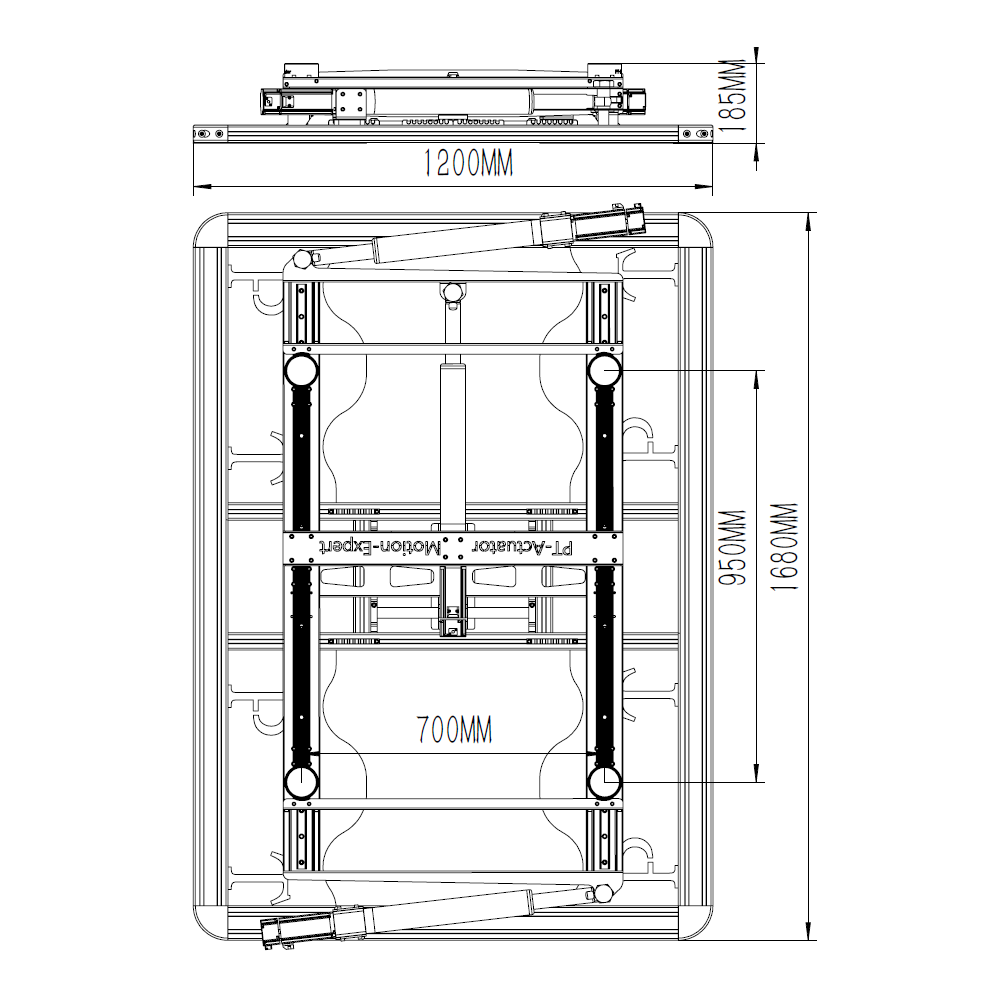

  • 1 set of Motion Base”Motion Dragon GT” (Aluminum profile+Metal structure) Support for profiles model 40/40, 40/80, 40/160
  • 4 sets of Scorpion series mounting bracket for sim racing rig/chassis adding TL and Surge brackets
  • 7 set of power and encoder cables (3meters long)
  • 1 set of metal housing for driver system
  • PTA-SRS License included
  • 1 set of E- stop button ( Lan CAT6 cable. Length:2m )
  • 1 set of PTA Belt TensionR
  • 1 set of Tower for TensionR

Supported Motion Software: Sim Racing Studio or  Simtools V2 (not included)

View full details

  • We Ship Country-wide

    We have partnered with The Courier Guy and shipping can be done to any location in South Africa. All shipping costs will be provided on Checkout. All aluminium rigs are shipped fully assembled.

  • Delivery & Collections in Gauteng

    We do provide delivery services to any location in Gauteng You also have an option to collect from us in Centurion, Pretoria
